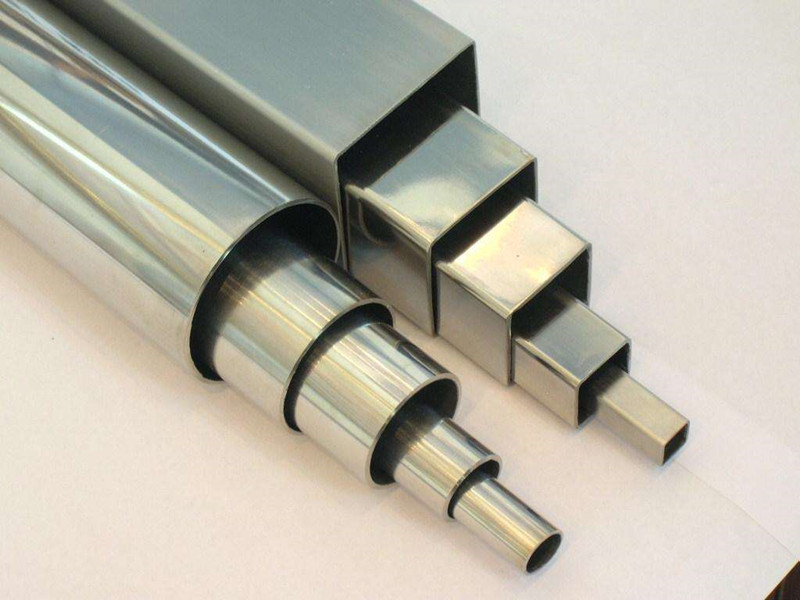

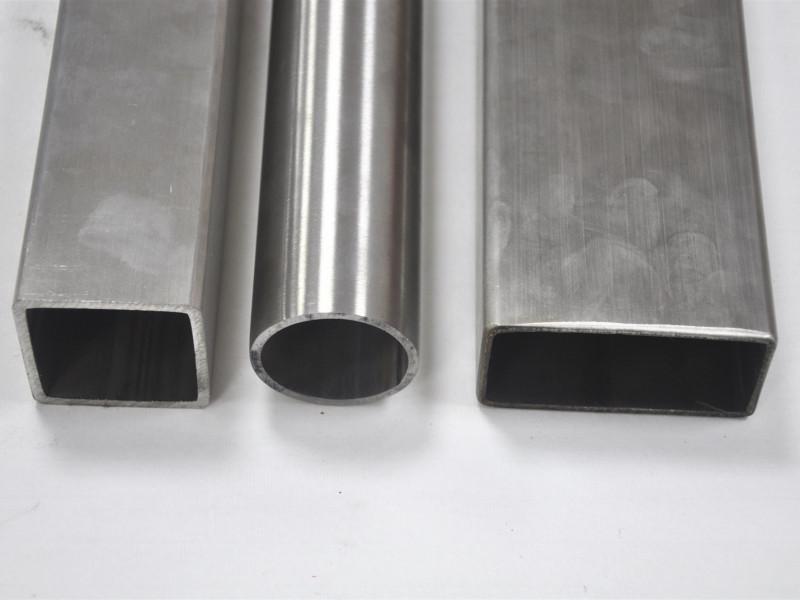

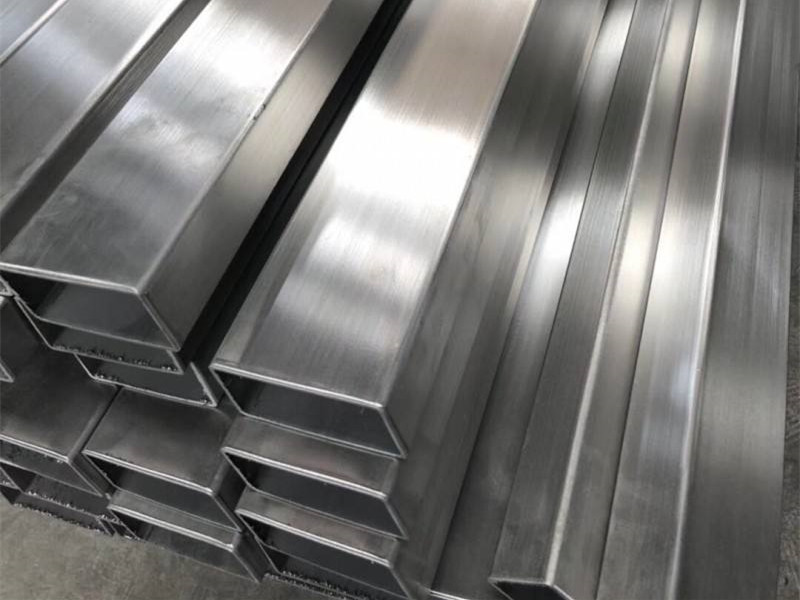

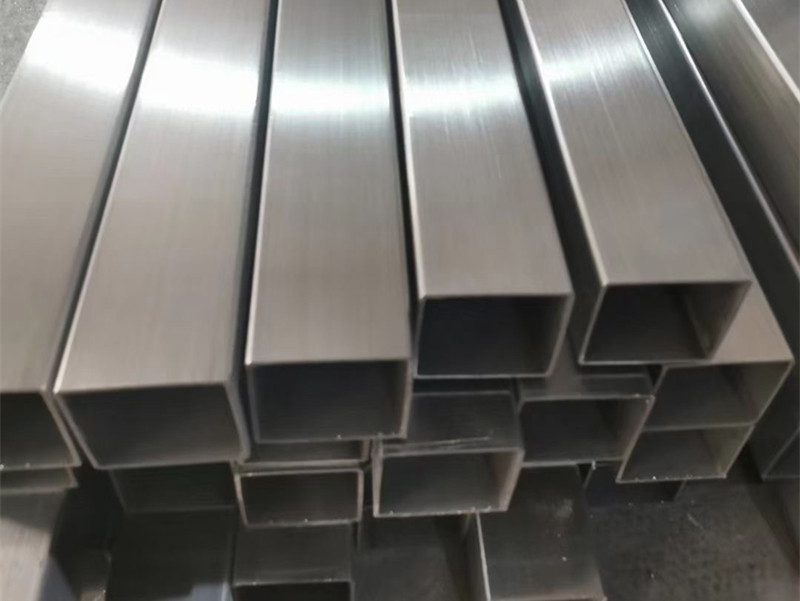

Pipe Type: Stainless Steel Square Tube, Stainless Steel rectangular Tube, Square Hollow Section, Rectangular Hollow Section
Application: The high quality Stainless steel rectangular pipe / tube is widely used for building, architecture, industry, safeguard, decoration, tools, etc.
Specification:
Square Hollow Section:
Outside Diameter: 8mm x 8mm – 150mm x 150mm
Wall Thickness: 0.5mm – 4mm
Rectangular Hollow Section:
Outside Diameter: 5mm x 20mm – 120mm x 60mm
Wall Thickness: 0.5mm – 4mm
Standard: ASTM A554,ASTM A249,ASTM A312,DIN11850,JIS G3459,JIS G3448,GB/T12770,GB/T12771
Steel Grades: 304/304L,316/316L,301,202,201,409,410,430
Surface: Pickled, Bright, Matt, Polished, Mirror.
Packing: Wooden box :packing for Stainless steel rectangular pipe/tube with mirror surface pipe/tube.
Normal size packing: in bundles packing for Stainless steel rectangular pipe/tube without mirror surface.
Wooden and pallet packing.Other packing as per customer requirement.
Email:sales@sqsteelpipe.com
Whats App: 008613761124029
Skype:steelproducts
Wechat:137463635
The stainless steel hollow sections are mainly used for various application viz constructions, architectural designs, food & pharmaceutical industries, offshore & marine industries, metro trains, railways, bus body building, other public transportation, process machineries, nuclear plants, etc.
Manufactured by using high-grade raw material and latest technology, our range is reckoned in the market for its durability and superior functionality. With the support of an experienced team of professionals and robust infrastructure, we are able to deliver our range in standard and customized specifications.
Conditions
The Tubes shall be Furnished in any of the following conditions as specified :
1. As welded
2. Welded and Annealed
3. Cold Reduced
4. Cold Reduced and Annealed
The inside diameter bead shall be furnished in any of the following conditions as specified :
1. Bead not removed
2. Bead controlled to 0.005 in (0.13 mm) or 15% of the specified wall thickness, whichever is greater,
3. Bead Removed
Square and Rectangular welded stainless tubing is supplied as cold worked unless otherwise specified.

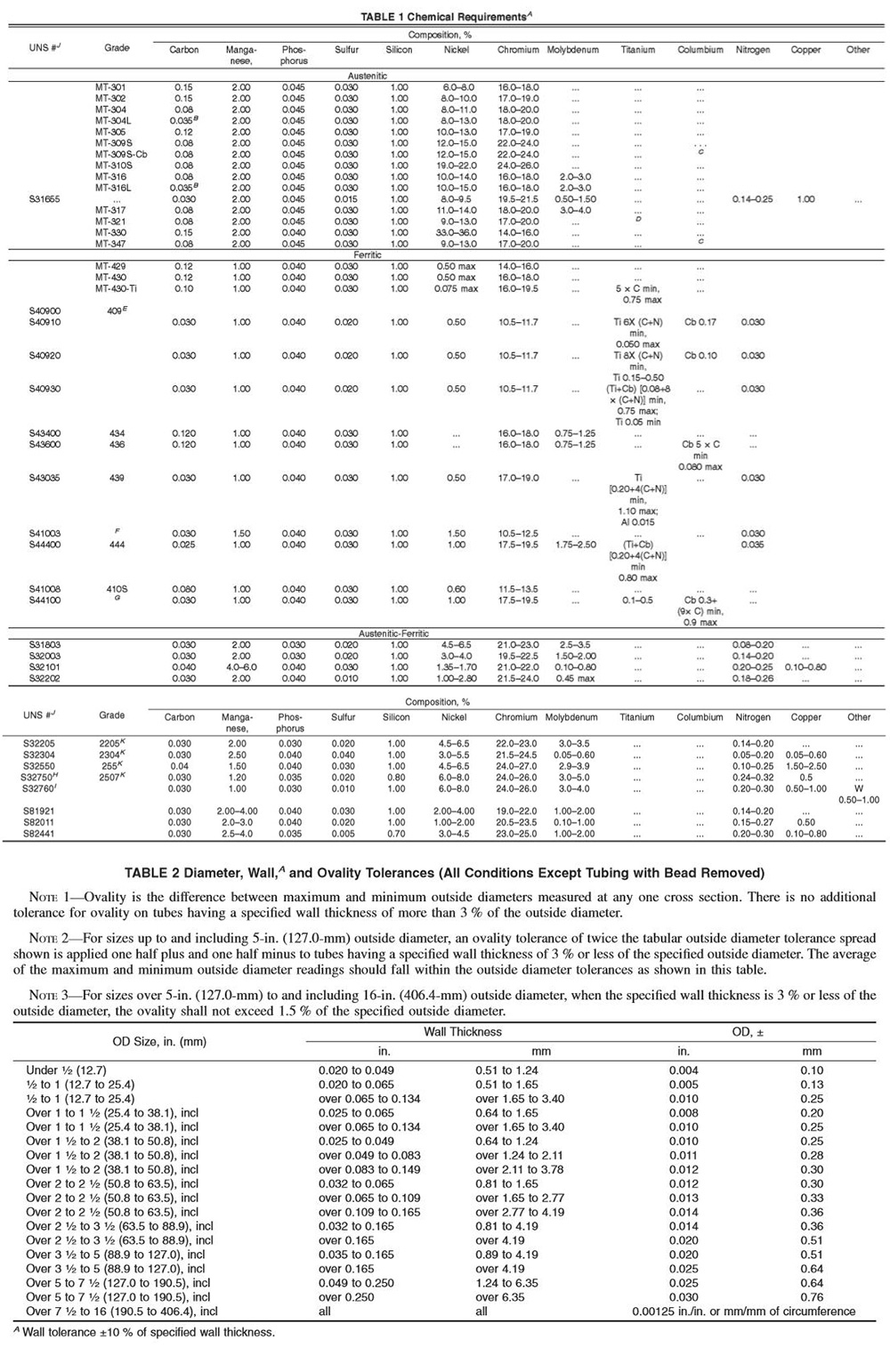

ASTM A554 Hollow Section
1.1 This specification covers welded austenitic, ferritic, and austenitic-ferritic duplex stainless steel mechanical tubing intended for use in ornamental, structural, exhaust, and other applications where appearance, mechanical properties, or corrosion resistance is needed. The grades covered are listed in Table
1.2 This specification covers as-welded or cold-reduced mechanical tubing in sizes to 16 in. (406.4 mm) outside dimension, and in wall thicknesses 0.020 in. (0.51 mm) and over.
1.3 Tubes shall be furnished in one of the following shapes as specified by the purchaser: round, square, rectangular, or special.
1.4 Supplementary requirements of an optional nature are provided and when desired shall be so stated in the order.
1.5 The values stated in inch-pound units are to be regarded as standard. The values given in parentheses are mathematical conversions to SI units that are provided for information only and are not considered standard.
